5-00022
ExactFit Radiator
MAP
$947.00
ExactFit Griffin aluminum radiator with a 18.5" x 22.4" downflow design and 2-row MegaCool core, built for efficient cooling in applications under 650 HP.
Click to zoom

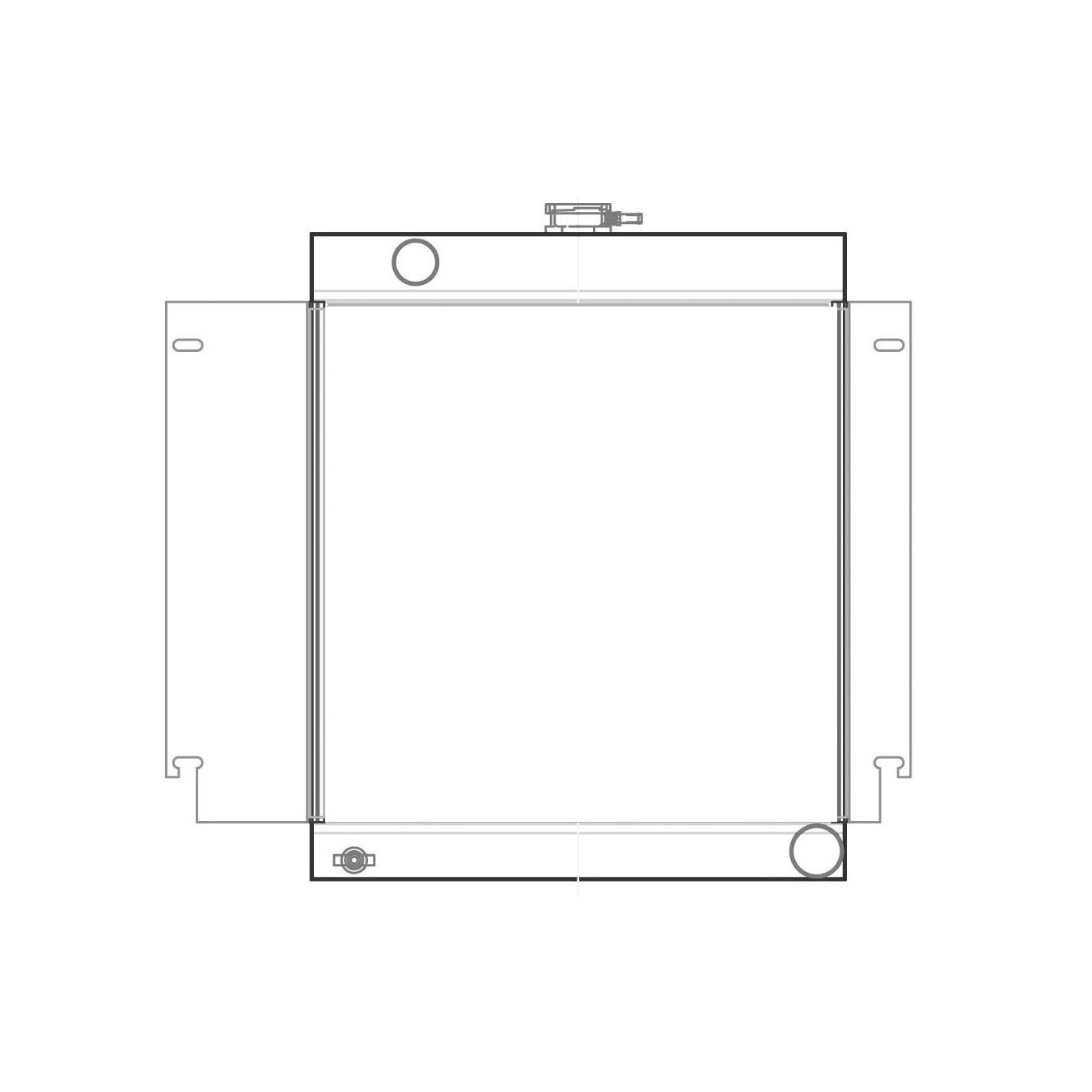

Engineering Drawing, actual product may vary
Key Specs
Core Size18.57" × 18.00"
Overall Size18.50" × 22.40"
Rows2
FlowDownFlow
Max HP650
Upgrade to Combo Unit
Part No. CU-00022
Get the radiator, fans, shroud & cap as one complete package.
$1,188.00
MAP
View ComboUnit Details
Dimensions
Overall Width18.50"
Overall Height22.40"
Overall Thickness3.00"
Core Width18.57"
Core Height18.00"
Core Thickness2.68"
Configuration
InletTop Driver, 1.5"
OutletBottom Passenger, 1.75"
Cap IncludedNo
Cooling
Flow TypeDownFlow
Rows2
Tube Size1.25"
Core Area334.3 sq in
MaterialAluminum
FinishNatural
Est. Max HP Rating650
Transmission
TransmissionManual
Application
Engine FamilyMopar "B" & "E" Body Small Core Small Block
Vehicle Fitments (24) Show All
| Year | Make | Model | Engine | Transmission |
|---|---|---|---|---|
| 1970 | Dodge | Challenger | Manual | |
| 1971 | Dodge | Challenger | Manual | |
| 1972 | Dodge | Challenger | Manual | |
| 1973 | Dodge | Challenger | Manual | |
| 1974 | Dodge | Challenger | Manual | |
| 1971 | Plymouth | Barracuda | Manual | |
| 1972 | Plymouth | Barracuda | Manual | |
| 1973 | Plymouth | Barracuda | Manual | |
| 1974 | Plymouth | Barracuda | Manual | |
| 1970 | Plymouth | Cuda | Manual | |
| 1971 | Plymouth | Cuda | Manual | |
| 1972 | Plymouth | Cuda | Manual | |
| 1973 | Plymouth | Cuda | Manual | |
| 1974 | Plymouth | Cuda | Manual | |
| 1970 | Plymouth | Cuda AAR | Manual | |
| 1971 | Plymouth | Cuda AAR | Manual | |
| 1972 | Plymouth | Cuda AAR | Manual | |
| 1973 | Plymouth | Cuda AAR | Manual | |
| 1974 | Plymouth | Cuda AAR | Manual | |
| 1970 | Plymouth | Hemicuda | Manual | |
| 1971 | Plymouth | Hemicuda | Manual | |
| 1972 | Plymouth | Hemicuda | Manual | |
| 1973 | Plymouth | Hemicuda | Manual | |
| 1974 | Plymouth | Hemicuda | Manual |
