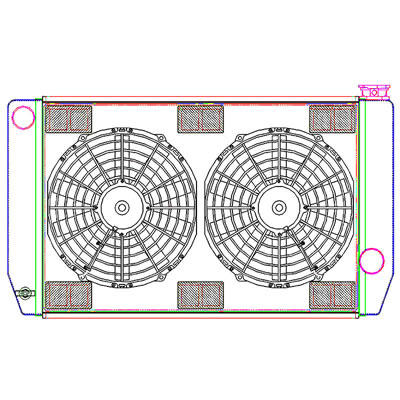

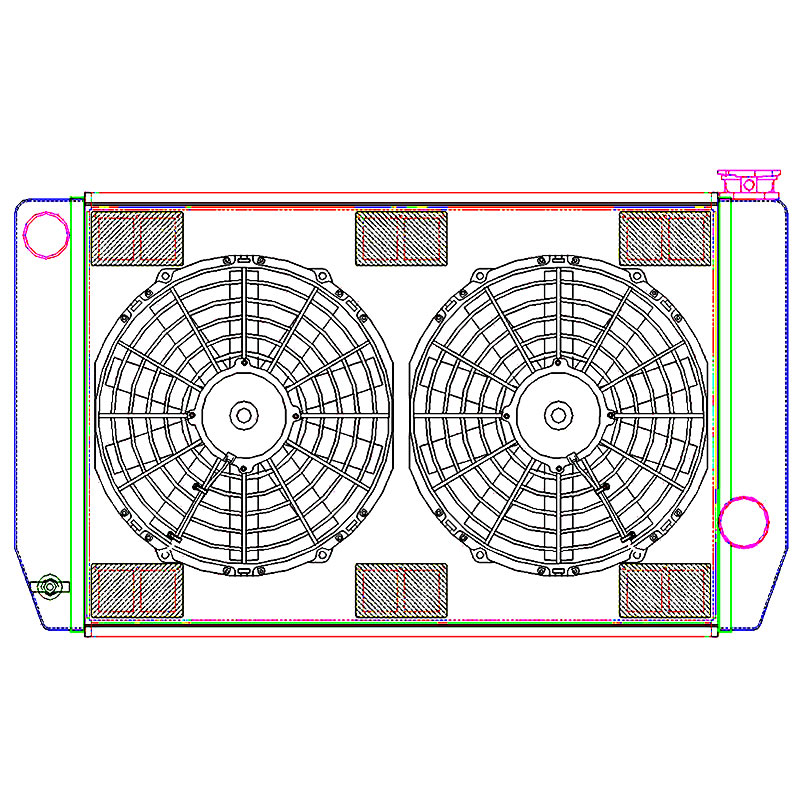

Images may be representations. Actual product may vary.
| Overall Size: | 27.50x15.50x3 |
| Core Size: | 22.50x15.50x2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Material: | Lightweight Aluminum |
| Inlet: | TL (1.5") |
| Outlet: | BR (1.75") |
| Notes: | Straight Lower Outlet |
| Fan Size: | Twin 10 (in) 1694 CFM total |
| Total Thickness: | 5.625 (Rad + Fan) |
| Shipping Wt: | 35 lbs |
| Availability: | In Stock |
Featuring Griffin's MegaCool 2 rows of 1.25 inch induction welded aluminum tubing. Griffin MegaCool offers more cooling and more flow than the industry standard.
A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
