Griffin Aluminum Radiator - Part Number 5-00154

Suggested Retail Price $1487
WARNING: Click Here for Proposition 65 Warning.
Back To Results

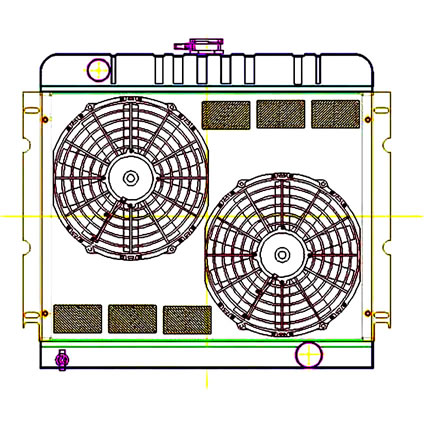

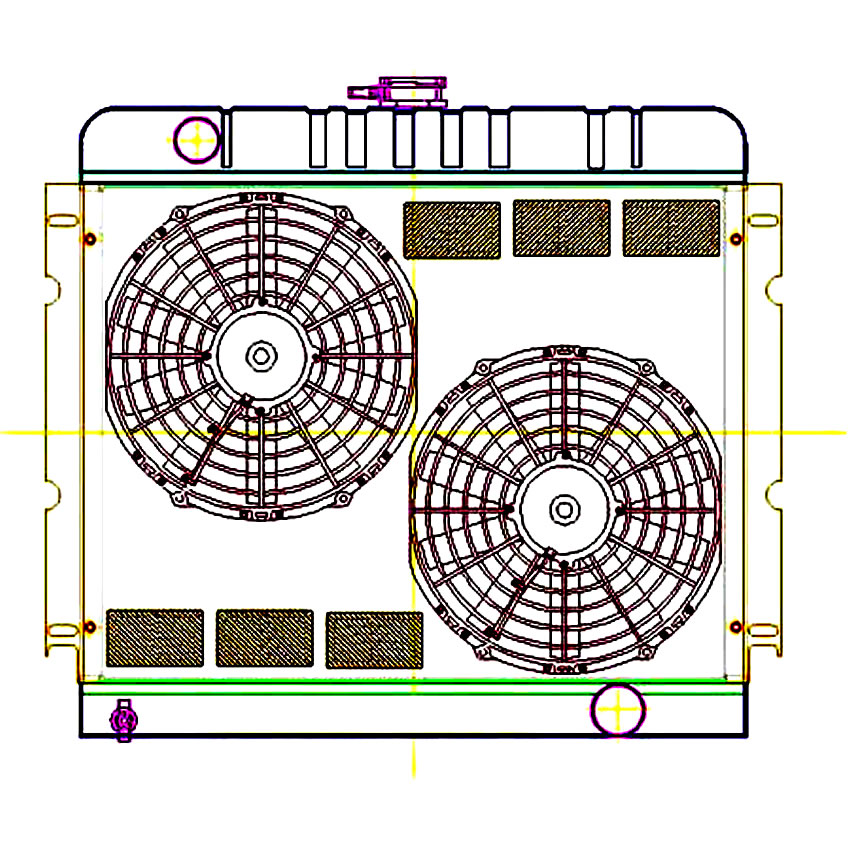

Griffin ExactFit ComboUnit Radiator Details
Vehicle:
PART NUMBER: CU-00154

Finish: Aluminium/Silver
Core Size: 22.57 X 17 X 2.68
Trans Cooler: No>
Trans Cooler Fittings: N/A
2 rows of 1.25(in) tubing
Inlet/Outlet: Top Driver / Bottom Passenger
Inlet/Outlet Size: 1.50"/1.75"
App Specific: Mopar A Body OEM Common Small Block V8
Notes: *Due to variations in factory mounting brackets please call Griffin to discuss and confirm fitment if you have any questions before purchasing.* Note: Could Be Used In GM Motor swap
Flow Direction: DownFlow
Description: 1970 - 1972 Dart, Demon, Duster, Scamp, Swinger, Valiant, Mopar "A" Body OEM Common Small Block V8 (Could be used in GM motor swap) Manual Transmission - ExactFit - ComboUnit, Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Rad Cap
Combo Thickness: 6.27 (in)
Spal® Fan Info: Twin 10 (in) 1694 CFM total
Shipping Info: Weight-35(lbs), Length-29(in), Width-17(in), Height-36(in)

This product features 2 row of Griffin MegaCool 1.25 inch induction welded aluminum tube. Griffin MegaCool tube offers more cooling and more flow than the industry standard 1.00 inch tubing. for -



A "one stop shop" for all of your cooling needs, this product is a Griffin High Performance Combo Unit. In an effort to provide you with the absolute best cooling performance for your vehicle we have paired this radiator with an electric fan and a hand formed aluminum fan shroud. In some cases Griffin Combo Units even include other accessories such as wiring harnesses, catch cans, and or AC condensers.


For more details on this combo unit or creating your own custom combo unit please calls us at: 1-800-RACERAD (1-800-722-3723).
