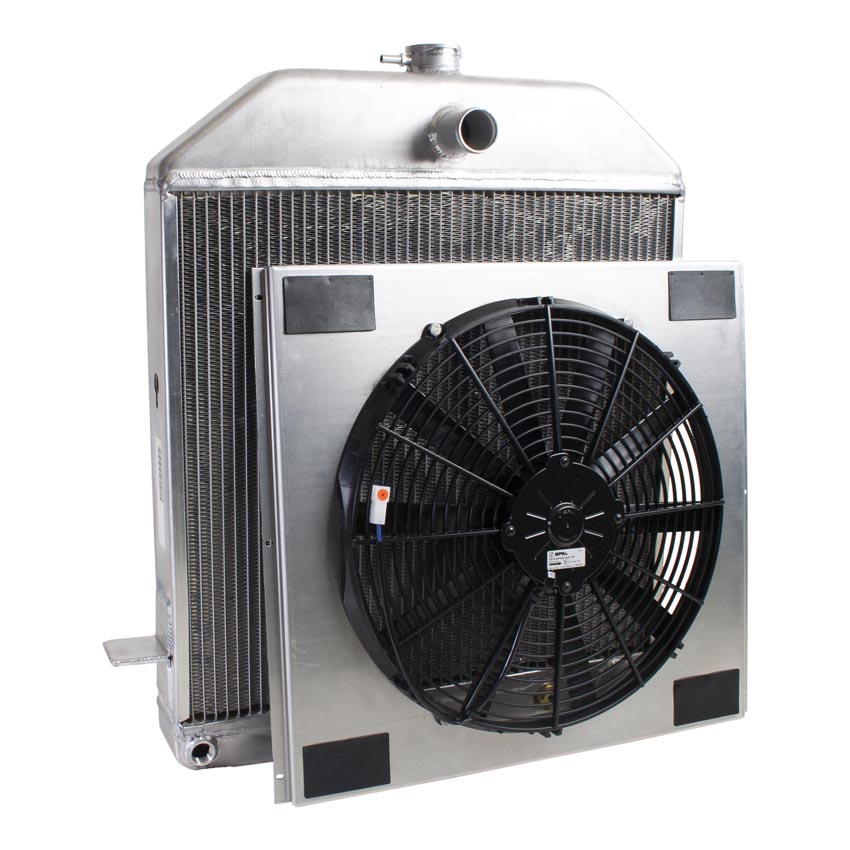

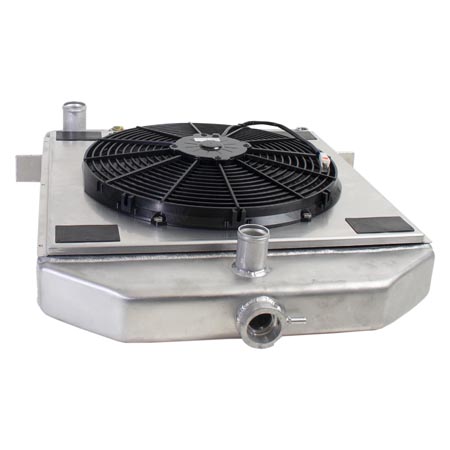

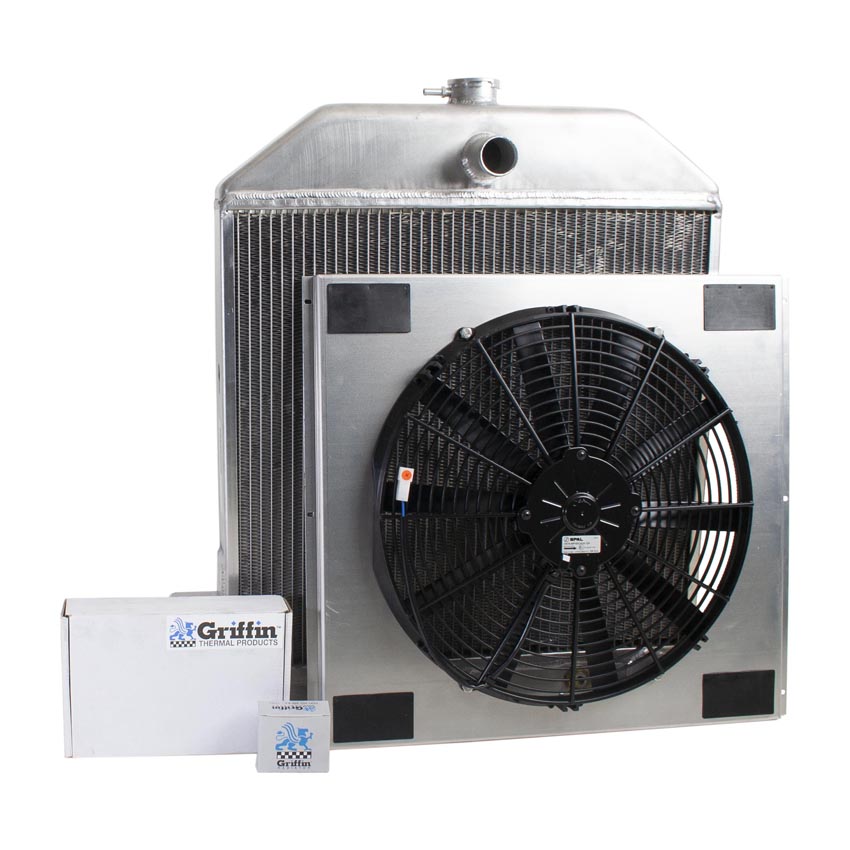

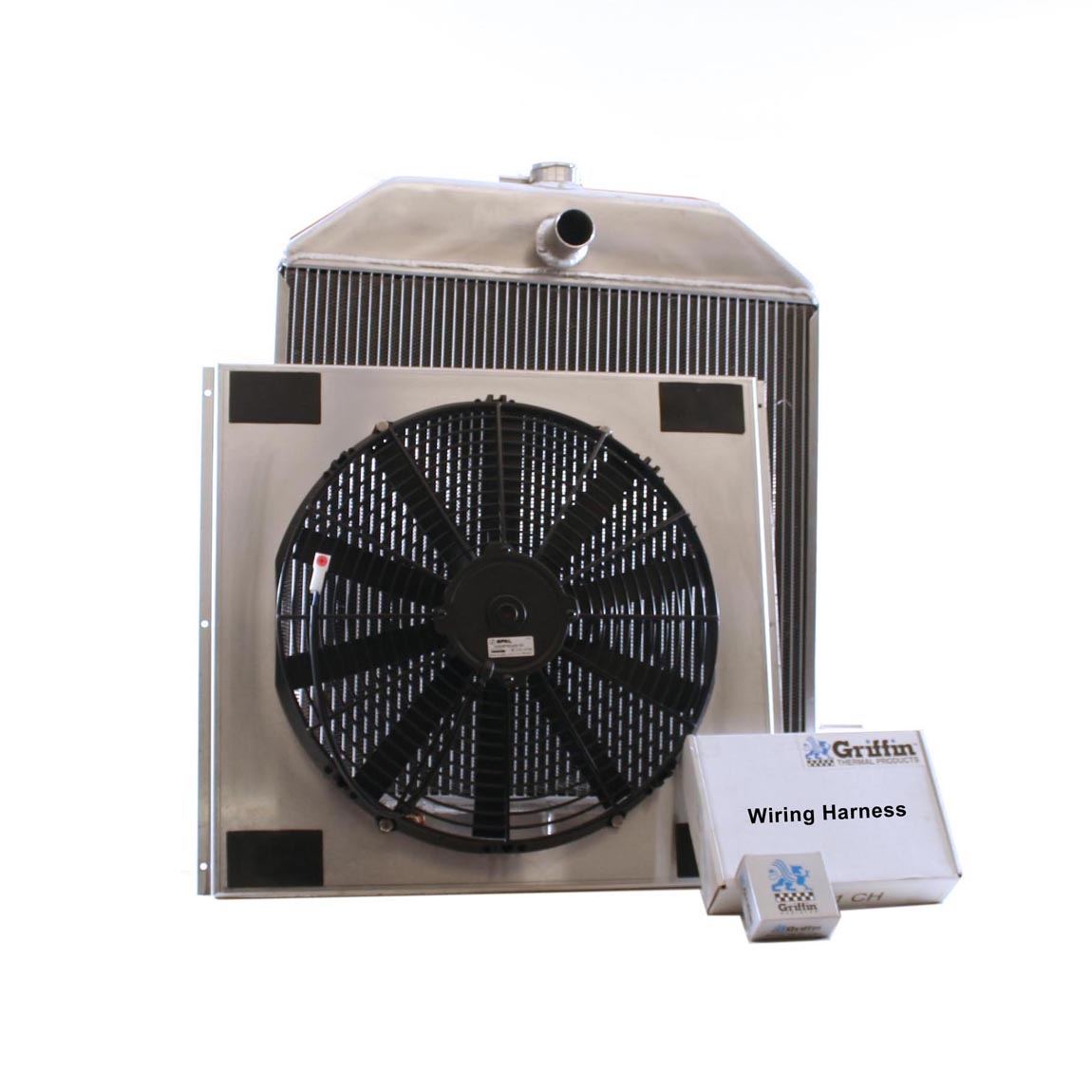

Radiator CU-70102 Front View Radiator CU-70102 Angle View Radiator CU-70102 Back View Radiator CU-70102 Side View Radiator CU-70102 Drawing View
Back To Results

Griffin ExactFit ComboUnit Radiator Details
Vehicle: rod
PART NUMBER: CU-70102

Finish: Aluminium/Silver
Core Size: 21 X 19 X 2.68
Trans Cooler: Yes>
Trans Cooler Fittings: 1/4 (in) NPT
2 rows of 1.25(in) tubing
Inlet/Outlet: Top Center / Bottom Passenger
Inlet/Outlet Size: 1.50"/1.75"
App Specific: V8 Ford "LATE MODEL" & OEM Big Block (EXC. MODULAR)
Flow Direction: DownFlow
Description: 1939 - 1940 Ford Deluxe, Outlets top center bottom passenger, Auto Transmission - ExactFit - ComboUnit, Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Rad Cap
Combo Thickness: 5.7 (in)
Spal® Fan Info: Single 16 (in) 1074 CFM
Shipping Info: Weight-35(lbs), Length-29(in), Width-17(in), Height-36(in)

Suggested Retail Price $1729
WARNING: Click Here for Proposition 65 Warning.

This product features 2 row of Griffin MegaCool 1.25 inch induction welded aluminum tube. Griffin MegaCool tube offers more cooling and more flow than the industry standard 1.00 inch tubing. for - rod



A "one stop shop" for all of your cooling needs, this product is a Griffin High Performance Combo Unit. In an effort to provide you with the absolute best cooling performance for your vehicle we have paired this radiator with an electric fan and a hand formed aluminum fan shroud. In some cases Griffin Combo Units even include other accessories such as wiring harnesses, catch cans, and or AC condensers.


For more details on this combo unit or creating your own custom combo unit please calls us at: 1-800-RACERAD (1-800-722-3723).
