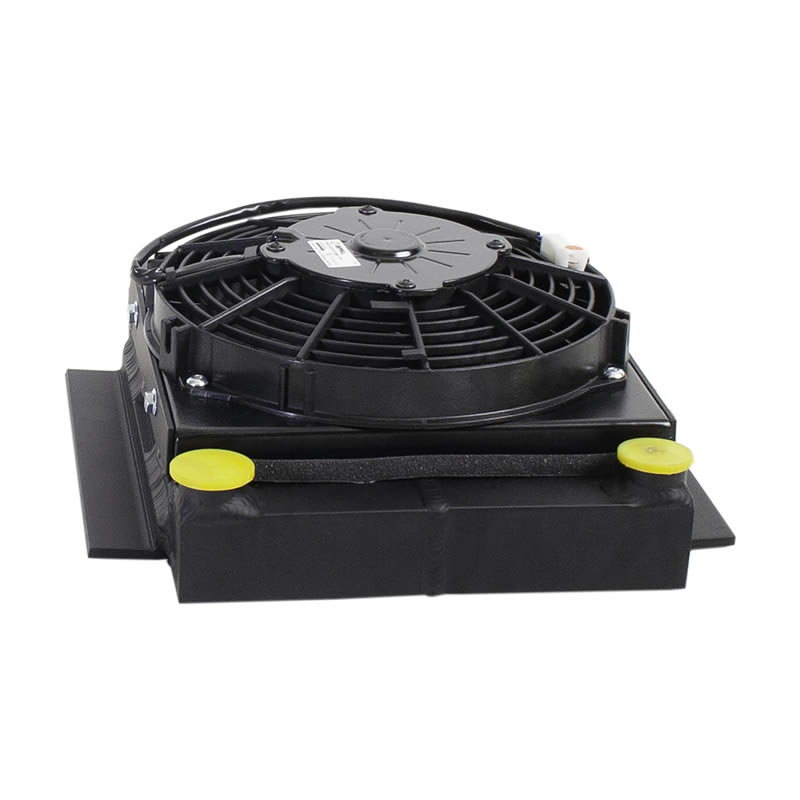

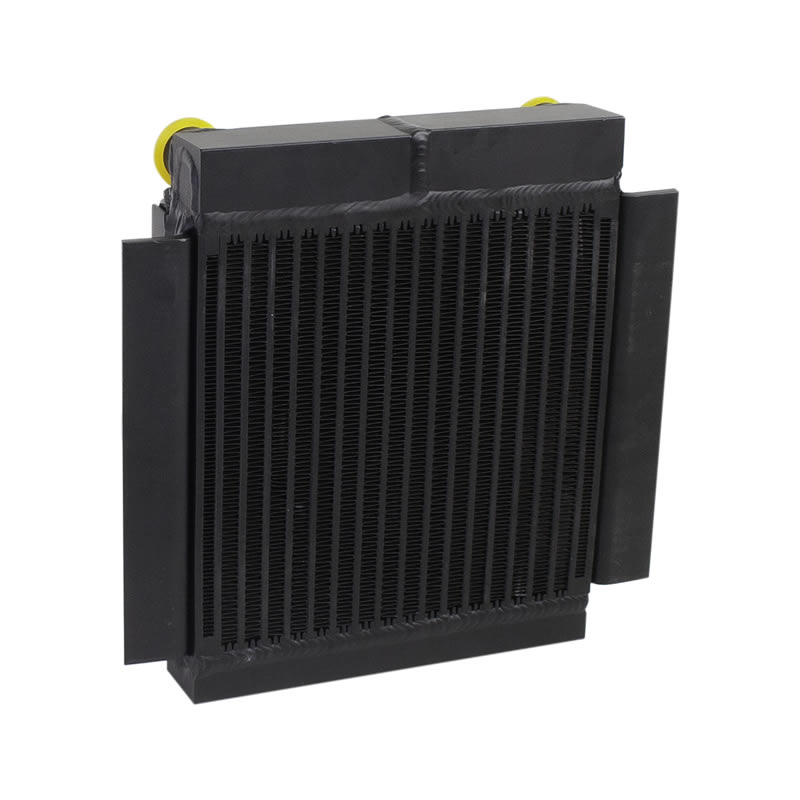

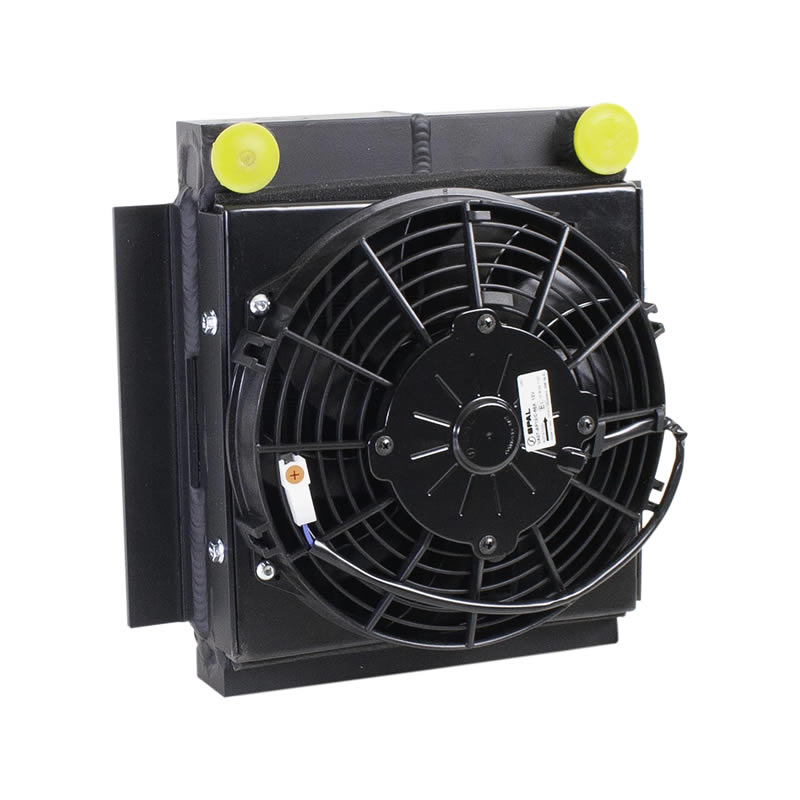

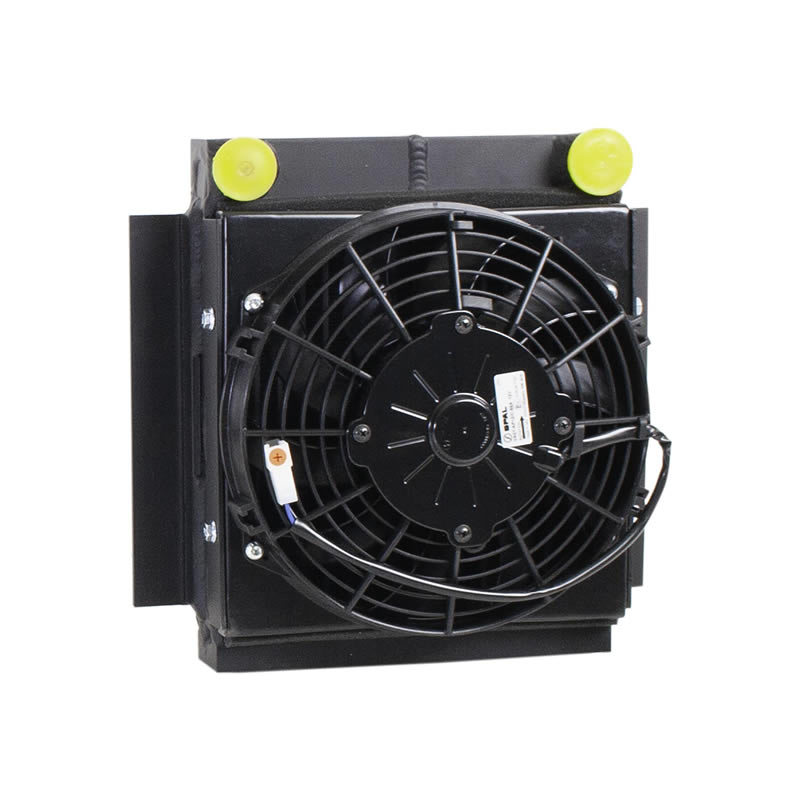

Radiator CXU-00002 Front View Radiator CXU-00002 Angle View Radiator CXU-00002 Back View Radiator CXU-00002 Side View Radiator CXU-00002 Drawing View
Back To Results

Griffin Universal Fluid Cooler Details
Vehicle: All
PART NUMBER: CXU-00002

Finish: Aluminium/Black
Core Size: 9.5 X 9.47 X 3
Trans Cooler: Transmission, Engine, Power Steering Fluids
Trans Cooler Fittings: 1/2" NPT
1 rows of 1.75(in) tubing
Inlet/Outlet: TR/BR
Inlet/Outlet Size: 1/2 in NPT"/1/2 in NPT"
Overall Size: 12.06 x 12.47 x 3
Description: Griffin Universal Fluid Cooler (Small) for Transmission Fluid, Engine Oil, Power Steering Fluid etc. 9.5" X 12.5" Dual Pass 1 row of 1.75" Tube

Combo Thickness:
6.39 (in)

Spal® Fan Info: PF-43 9inch Paddle Blade Puller
Shipping Info: Weight-20(lbs), Length-23.5(in), Width-8.5(in), Height-35.5(in)

Suggested Retail Price $335.08
