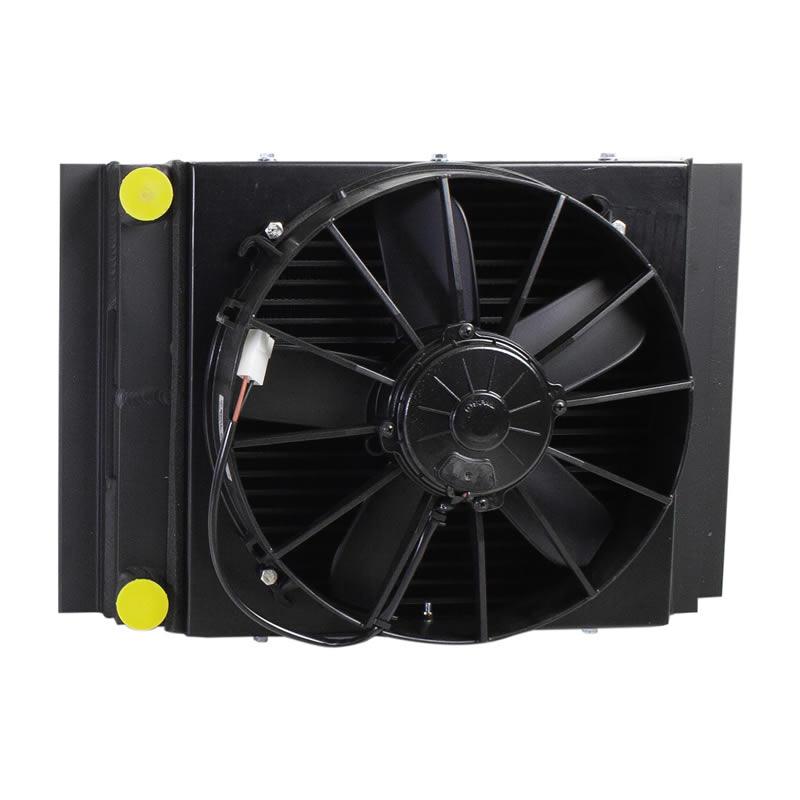

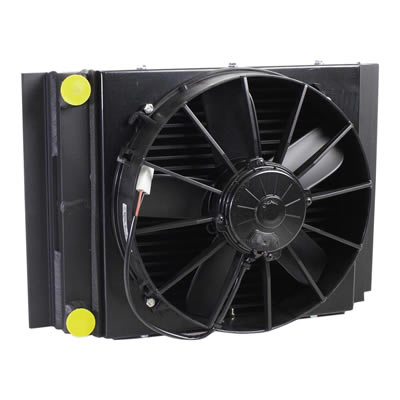

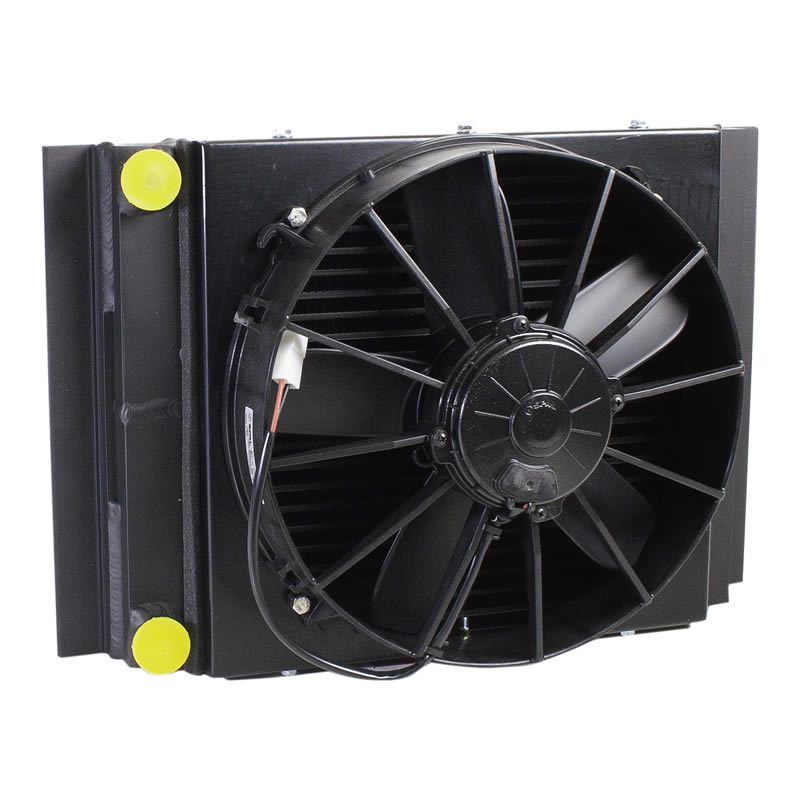

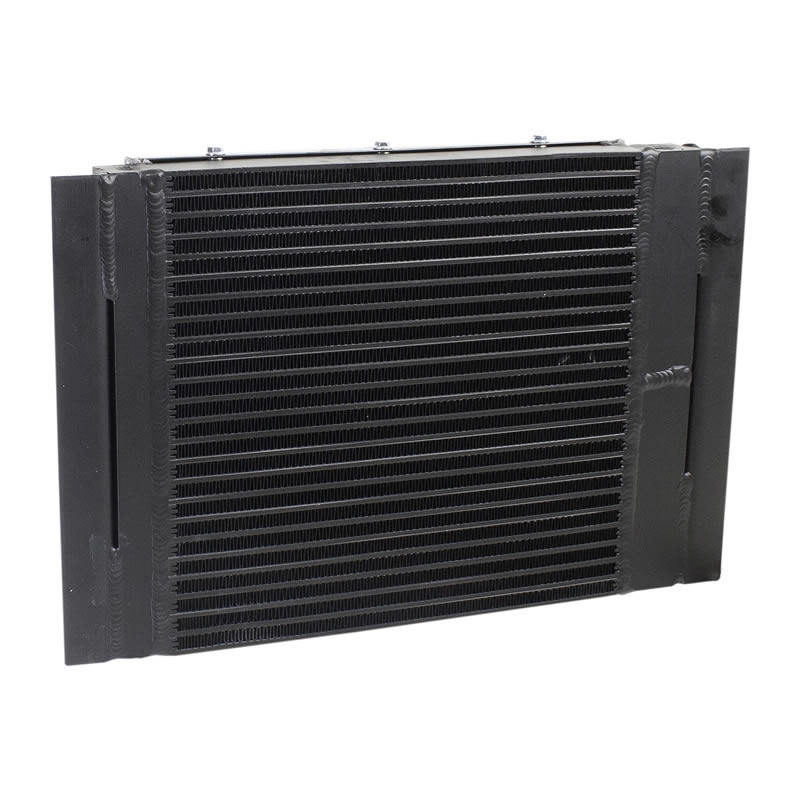

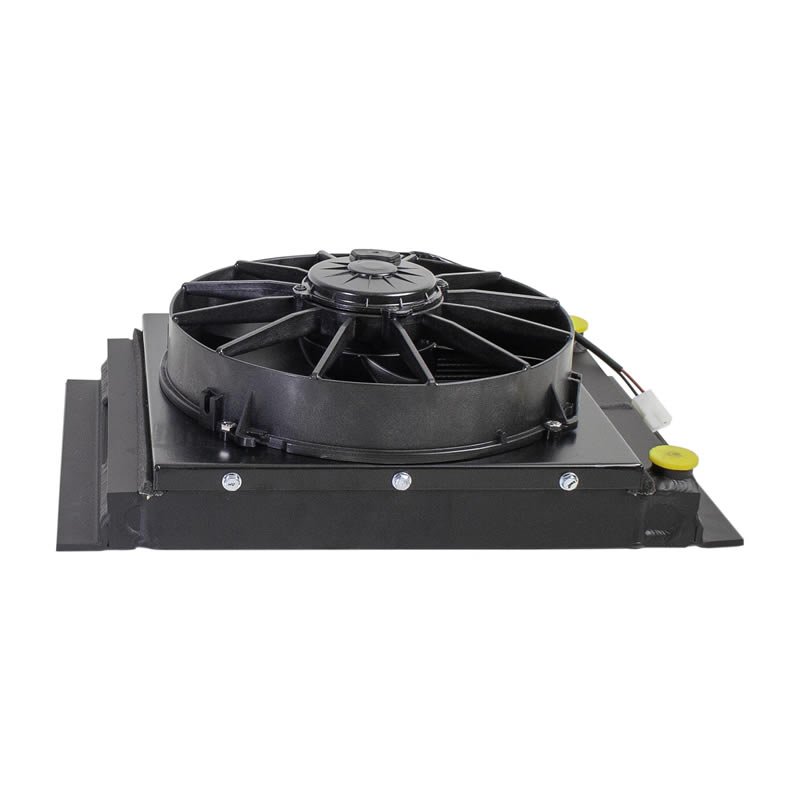

Radiator CXU-00001 Front View Radiator CXU-00001 Angle View Radiator CXU-00001 Back View Radiator CXU-00001 Side View Radiator CXU-00001 Drawing View
Back To Results

Griffin Universal Fluid Cooler Details
Vehicle: All
PART NUMBER: CXU-00001

Finish: Aluminium/Black
Core Size: 13.75 X 12.82 X 3
Trans Cooler: Transmission, Engine, Power Steering Fluids
Trans Cooler Fittings: 1/2(in) npt" NPT
1 rows of 1.75(in) tubing
Inlet/Outlet: TL/BL
Inlet/Outlet Size: 1/2 in NPT"/1/2 in NPT"
Overall Size: 19.75 x 12.82 x 6.09
Description: Griffin Universal Fluid Cooler (Large) for Transmission Fluid, Engine Oil, Power Steering Fluid etc. 19.5" X 13" Dual Pass 1 row of 1.75" Tube

Combo Thickness:
6.09 (in)

Spal® Fan Info: PF-20
Shipping Info: Weight-20(lbs), Length-23.5(in), Width-8.5(in), Height-35.5(in)

Suggested Retail Price $453.86
