Griffin Thermal Products
Griffin Thermal Products
750 Estes Drive, Piedmont, SC 29673
1-800-722-3723 · griffinrad.com
Spec Sheet May 21, 2026
CU-28201-XLS
UniversalFit ComboUnit
MAP $671.00 Pricing subject to change. Please call for the most up-to-date pricing.

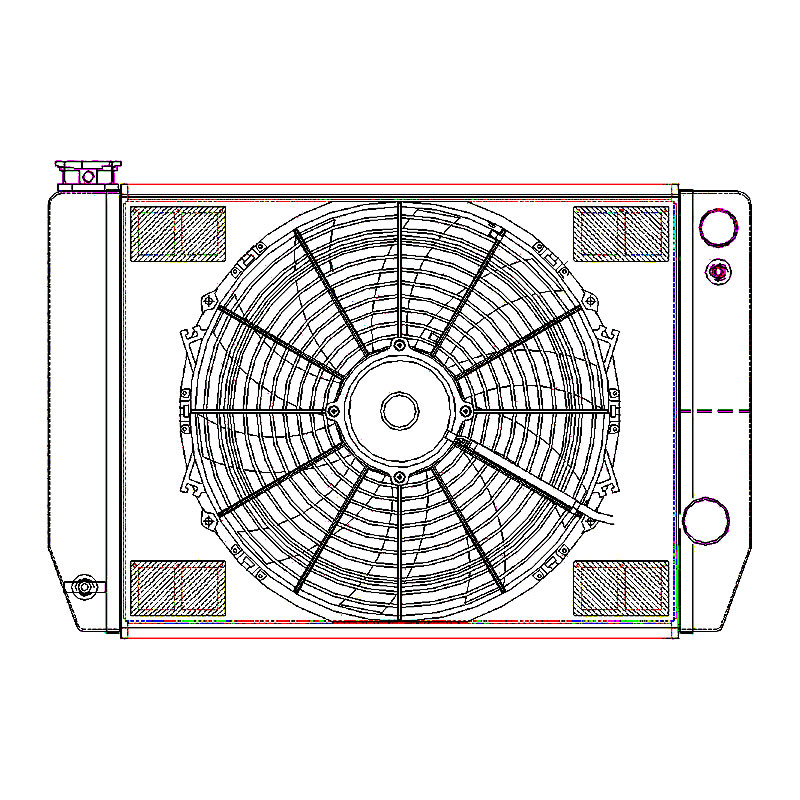

UniversalFit Griffin aluminum radiator with a 24.0" x 15.5" crossflow design and 2-row ClassicCool core, built for efficient cooling in applications under 400 HP.
CU-28201-XLS
Dimensions
Overall (W × H × T)24.00" × 15.50" × 5.31"
Core (W × H × T)19.00" × 15.50" × 2.25"
Core Area294.5 sq in
Configuration
InletTop Passenger, 1.25"
OutletBottom Passenger, 1.5"
Cap IncludedNo
Cooling
Flow TypeCrossFlow
Rows2
Tube Size1.00"
Material / FinishAluminum / Natural
Est. Max HP400
Transmission
TransmissionManual
Trans CoolerNot included
Fan Package
SPAL Fan14.00"
Total CFM956 CFM
Application
Engine FamilyLS
What's Included
  • Aluminum Radiator · 2-row MegaCool core
  • 14.00" SPAL Fan · 956 CFM total
  • Fan Shroud · factory-mounted
Scan with phoneView Online
QR code linking to https://www.griffinrad.com/products/CU-28201-XLS
Scan the QR code or visit griffinrad.com/products/CU-28201-XLS for product photos, the complete vehicle fitment list, and ordering details.
Made in USA · ISO 9001:2015 Certified · 120,000 sq ft facility in Piedmont, SC
