Spec Sheet Jun 13, 2026
7-70146
ExactFit Radiator
MAP $1,151.00 Pricing subject to change. Please call for the most up-to-date pricing.

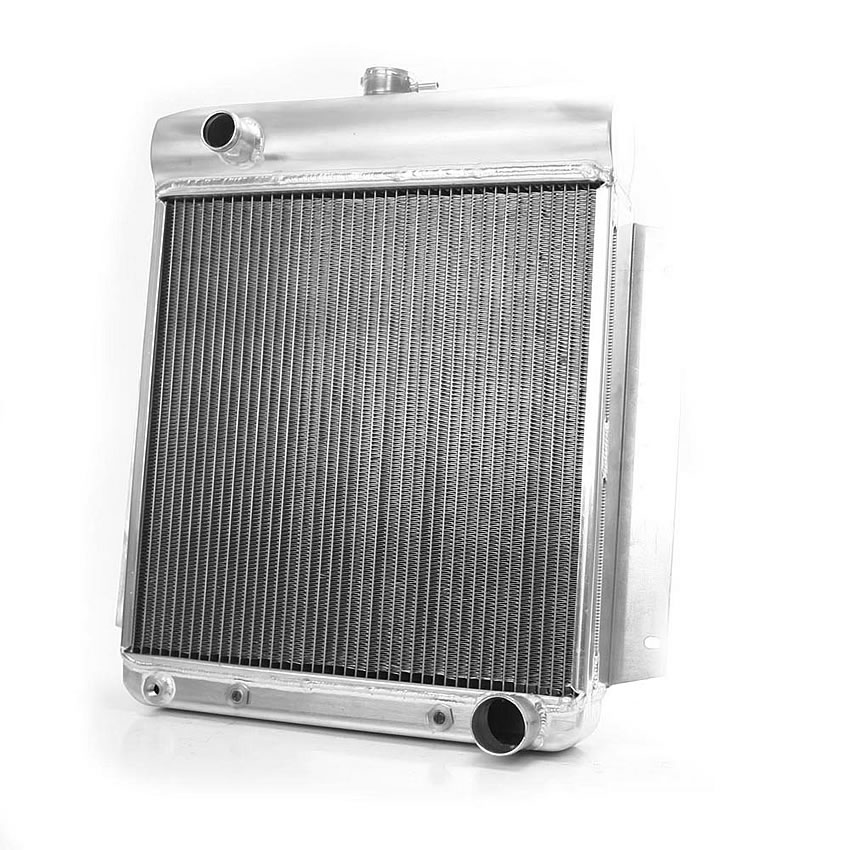

ExactFit Griffin aluminum radiator with a 22.87" x 24.5" DownFlow design and 2-row MegaCool core, built for efficient cooling in applications under 650 HP.
7-70146
Dimensions
Overall (W × H × T)22.87" × 24.50" × 3.00"
Core (W × H × T)19.00" × 18.00" × 2.68"
Core Area342 sq in
Configuration
InletTop Driver, 1.5"
OutletBottom Passenger, 2"
Cap IncludedNo
Cooling
Flow TypeDownFlow
Rows2
Tube Size1.25"
Material / FinishAluminum / Natural
Est. Max HP650
Trans CoolerYes, 1/4 (in) NPT
Application
Engine FamilyOEM L6 Ford & GM V8 CONVERSION
TransmissionAutomatic
Scan with phoneView Online
QR code linking to https://www.griffinrad.com/products/7-70146
Scan the QR code or visit griffinrad.com/products/7-70146 for product photos, the complete vehicle fitment list, and ordering details.
Made in USA · ISO 9001:2015 Certified · 120,000 sq ft facility in Piedmont, SC
